产品概述

The MAX6190–MAX6195/MAX6198 precision, micro-power, low-dropout voltage references offer high initial accuracy and very low temperature coefficient through a proprietary curvature-correction circuit and laser-trimmed precision thin-film resistors.

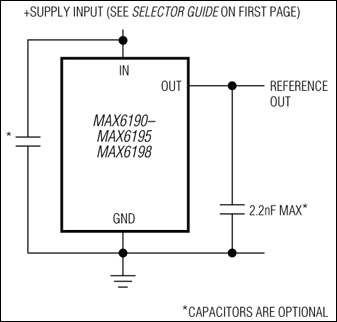

These series-mode bandgap references draw a maximum of only 35µA quiescent supply current, making them ideal for battery-powered instruments. They offer a supply current that is virtually immune to input voltage variations. Load-regulation specifications are guaranteed for source and sink currents up to 500µA. These devices are internally compensated, making them ideal for applications that require fast settling, and are stable with capacitive loads up to 2.2nF.

关键特性

以下关键特性由Maxim美信半导体提供：

±2mV (max) Initial Accuracy

5ppm/°C (max) Temperature Coefficient

35µA (max) Supply Current

100mV Dropout at 500µA Load Current

0.12µV/µA Load Regulation

8µV/V Line Regulation

热门应用

A/D与D/A转换器

手持式仪表(PDA、掌上电脑)

硬盘驱动器

工业过程控制

精密3V/5V系统
