MAX6312 - 5引脚、多输入、可编程复位IC

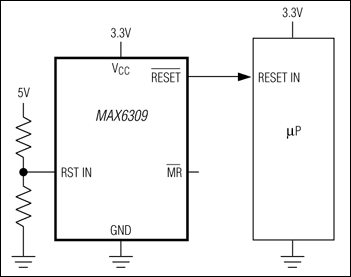

MAX6312是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，MAX6312是5引脚、多输入、可编程复位IC，本站介绍了MAX6312的封装应用图解、特点和优点、功能等，并给出了与MAX6312相关的Maxim元器件型号供参考。

MAX6312 - 5引脚、多输入、可编程复位IC - 监控电路、电压监测、排序 - 5引脚、多电压、可编程复位IC，SOT封装 - 美信半导体

产品概述

The MAX6305–MAX6313 CMOS microprocessor (µP) supervisory circuits are designed to monitor more than one power supply. Ideal for monitoring both 5V and 3.3V in personal computer systems, these devices assert a system reset if any of the monitored supplies falls outside the programmed threshold. Low supply current (15µA) and a small package suit them for portable applications. The MAX6305–MAX6313 are specifically designed to ignore fast transients on any monitored supply.

These devices are available in a SOT23-5 package, have factory-programmed reset thresholds from 2.5V to 5.0V (in 100mV increments), and feature four power-on reset timeout periods. Ten standard versions are available. Contact the factory for availability of non standard versions.

关键特性

以下关键特性由Maxim美信半导体提供：

Small 5-Pin SOT23 Package

Precision Factory-Set VCC Reset Thresholds; Available in 0.1V Increments from 2.5V to 5V

Immune to Short VCC Transients

Guaranteed Active-Low RESET Valid to VCC = 1V

Guaranteed Over Temperature

8µA Supply Current

Factory-Set Reset Timeout Delay from 1ms (min) to 1120ms (min)

No External Components

Manual Reset Input

Under/Overvoltage Supply Monitoring

热门应用

计算机：台式机、工作站和服务器

控制器

嵌入式控制系统

智能仪表

多电压系统：3V/5V、5V/12V、5V/24V

便携式电池供电设备

便携式计算机
