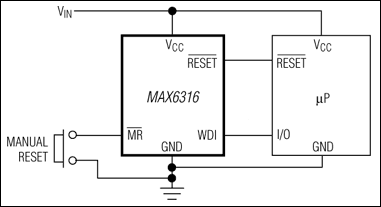

MAX6317 - 典型电路框图：
MAX6317典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX6317介绍

MAX6317 - 5引脚微处理器监控电路，带有看门狗定时及手动复位

MAX6317是Maxim美信半导体公司的一款美信芯片产品，MAX6317是5引脚微处理器监控电路，带有看门狗定时及手动复位，本站介绍了MAX6317的封装应用图解、特点和优点、功能等，并给出了与MAX6317相关的Maxim元器件型号供参考。

MAX6317 - 5引脚微处理器监控电路，带有看门狗定时及手动复位 - 美信芯片 - 通用的可定制SOT复位 + 看门狗IC，提供3,224中独特选择 - 美信半导体

产品概述

The MAX6316–MAX6322 family of microprocessor (µP) supervisory circuits monitors power supplies and microprocessor activity in digital systems. It offers several combinations of push/pull, open-drain, and bidirectional (such as Motorola 68HC11) reset outputs, along with watchdog and manual reset features. The Selector Guide below lists the specific functions available from each device. These devices are specifically designed to ignore fast negative transients on VCC. Resets are guaranteed valid for VCC down to 1V.

These devices are available in 26 factory-trimmed reset threshold voltages (from 2.5V to 5V, in 100mV increments), featuring four minimum power-on reset timeout periods (from 1ms to 1.12s), and four watchdog timeout periods (from 6.3ms to 25.6s). Thirteen standard versions are available with an order increment requirement of 2500 pieces (see Standard Versions table in the full data sheet); contact the factory for availability of other versions, which have an order increment requirement of 10,000 pieces.

The MAX6316–MAX6322 are offered in a miniature 5-pin SOT23 package.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Integrated Configuration Enables Flexible Designs
  • Available in 26 Reset- Threshold Voltages
  • 2.5V to 5V, in 100mV Increments
  • Four Reset Timeout Periods
  • 1ms, 20ms, 140ms, or 1.12s (min)
  • Four Watchdog Timeout Periods
  • 6.3ms, 102ms, 1.6s, or 25.6s (typ)
  • Four Reset Output Stages
  • Active-High, Push/Pull
  • Active-Low, Push/Pull
  • Active-Low, Open-Drain
  • Active-Low, Bidirectional
  • Integrated Features Increases Robustness
  • Guaranteed Reset Valid to VCC = 1V
  • Immune to Short-Negative VCC Transients
  • Saves Board Space
  • No External Components
  • Small 5-Pin SOT23 Package
    • 热门应用
  • 计算机：台式机、工作站和服务器
  • 控制器
  • 嵌入式控制系统
  • 智能仪表
  • 便携式电池供电设备
  • 便携式计算机
