MAX6333 - 3引脚、超低电压、低功耗、微处理器复位电路

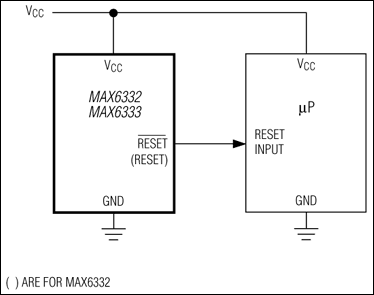

MAX6333是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，MAX6333是3引脚、超低电压、低功耗、微处理器复位电路，本站介绍了MAX6333的封装应用图解、特点和优点、功能等，并给出了与MAX6333相关的Maxim元器件型号供参考。

MAX6333 - 3引脚、超低电压、低功耗、微处理器复位电路 - 监控电路、电压监测、排序 - 业内首款性能优异的复位IC，用于1.8V电源，SOT封装 - 美信半导体

产品概述

The MAX6332/MAX6333/MAX6334 microprocessor (µP) supervisory circuits monitor the power supplies in 1.8V to 3.3V µP and digital systems. They increase circuit reliability and reduce cost by eliminating external components and adjustments.

These devices perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for a preset timeout period after VCC has risen above the reset threshold. The only difference among the three devices is their output. The MAX6333 (push/pull) and MAX6334 (open-drain) have an active-low RESET output, while the MAX6332 (push/pull) has an active-high RESET output. The MAX6332/MAX6333 are guaranteed to be in the correct state for VCC down to 0.7V. The MAX6334 is guaranteed to be in the correct state for VCC down to 1.0V.

The reset comparator in these ICs is designed to ignore fast transients on VCC. Reset thresholds are factory-trimmable between 1.6V and 2.5V, in approximately 100mV increments. There are 15 standard versions available (2,500 piece minimum-order quantity); contact the factory for availability of nonstandard versions (10,000 piece minimum-order quantity). For space-critical applications, the MAX6332/MAX6333/MAX6334 come packaged in a 3-pin SOT23.

关键特性

以下关键特性由Maxim美信半导体提供：

Ultra-Low 0.7V Operating Supply Voltage

Low 3.3µA Supply Current

Precision Monitoring of 1.8V and 2.5V Power-Supply Voltages

Reset Thresholds Available from 1.6V to 2.5V, in Approximately 100mV Increments

Fully Specified over Temperature

Three Power-On Reset Pulse Widths Available (1ms min, 20ms min, 100ms min)

Low Cost

Three Available Output Structures: Push/Pull Active-Low RESET, Push/Pull RESET, Open-Drain Active-Low RESET

Guaranteed RESET/Active-Low RESET Valid to VCC = 0.7V (MAX6332/MAX6333)

Power-Supply Transient Immunity

No External Components

3-Pin SOT23 Package

Pin-Compatible with MAX809/MAX810 and MAX6326/MAX6327/MAX6328

热门应用

汽车电子

计算机：台式机、工作站和服务器

控制器

精确的µP与µC电源监控

智能仪表

Pentium® ll计算机

便携式电池供电设备
