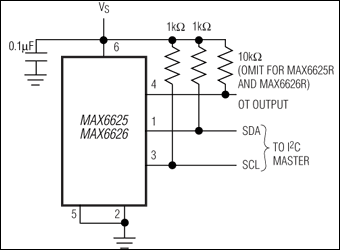

MAX6626 - 典型电路框图：
MAX6626典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX6626介绍

MAX6626 - 9位/12位温度传感器，带有I²C兼容串行接口，SOT23封装

MAX6626是Maxim美信半导体公司的一款1-Wire器件产品，MAX6626是9位/12位温度传感器，带有I²C兼容串行接口，SOT23封装，本站介绍了MAX6626的封装应用图解、特点和优点、功能等，并给出了与MAX6626相关的Maxim元器件型号供参考。

MAX6626 - 9位/12位温度传感器，带有I²C兼容串行接口，SOT23封装 - 1-Wire器件 - 9位、12位温度检测，采用6引脚SOT封装 - 美信半导体

产品概述

The MAX6625/MAX6626 combine a temperature sensor, a programmable overtemperature alarm, and an I²C-compatible serial interface into single compact packages. They convert their die temperatures into digital values using internal analog-to-digital converters (ADCs). The result of the conversion is held in a temperature register, readable at any time through the serial interface. A dedicated alarm output, OT, activates if the conversion result exceeds the value programmed in the high-temperature register. A programmable fault queue sets the number of faults that must occur before the alarm activates, preventing spurious alarms in noisy environments. OT has programmable output polarity and operating modes.

The MAX6625/MAX6626 feature a shutdown mode that saves power by turning off everything but the power-on reset and the I²C-compatible interface. Four separate addresses can be configured with the ADD pin, allowing up to four MAX6625/MAX6626 devices to be placed on the same bus. The MAX6625P/MAX6626P OT outputs are open drain, and the MAX6625R/MAX6626R OT outputs include internal pullup resistors.

The MAX6625 has a 9-bit internal ADC and can function as a replacement for the LM75 in most applications. The MAX6626 has a 12-bit internal ADC. Both devices come in the space-saving 6-pin SOT23 package, or the 6-pin TDFN package.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • 9-Bit Temperature-to-Digital Converter (MAX6625)
  • 12-Bit Temperature-to-Digital Converter (MAX6626)
  • I²C-Compatible Serial Interface
  • Up to Four Devices on a Single Bus
  • Versatile Alarm Output with Programmable Trip Temperature and Hysteresis
  • Low-Power Shutdown Mode
  • Space-Saving TDFN or SOT23 Packages
  • Lead-Free Version Available (TDFN Package)
    • 热门应用
  • 风扇控制
  • 工业设备
  • 系统温度控制
  • 温度报警
