MAX7624 - 改进的MX7524

MAX7624是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX7624是改进的MX7524，本站介绍了MAX7624的封装应用图解、特点和优点、功能等，并给出了与MAX7624相关的Maxim元器件型号供参考。

MAX7624 - 改进的MX7524 - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

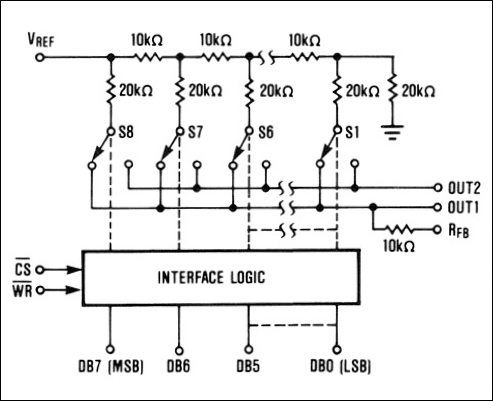

The MX7524/MAX7624 are CMOS 8-big digital-to-analog converters (DAC) which will interface directly with most microprocessors. On-chip input latches make the DAC interface similar to a RAM write cycle where active-low CS and active-low WR are the only control inputs required. Linearity up to ±1/8 LSB is available (MX7524L/C/U grades) and power consumption is less than 10mW. Monotonicity is guaranteed over the full temperature range.

For the MX7524, +5V TTL and CMOS logic compatibility is guaranteed when using +5V power. Over the supply range of +5V to +15V, all logic inputs are high voltage CMOS compatible. The MAX7624 has +5V TTL/CMOS compatible inputs for a +12V to +15V supply range.

关键特性

以下关键特性由Maxim美信半导体提供：

Microprocessor Compatible

On-chip Data Latches

Guaranteed Monotonic Over Temp.

Low Power Consumption

8, 9, 10-Bit Linearity

MX7524 TTL/CMOS Compatible at +5V

MAX7624 TTL/CMOS Compatible at +12V to +15V

热门应用

自动测试设备

总线结构仪表

数字控制系统

函数发生器

µP控制增益
