MAX815 - ±1%精度、低功耗、+3V与+5V微处理器监控电路

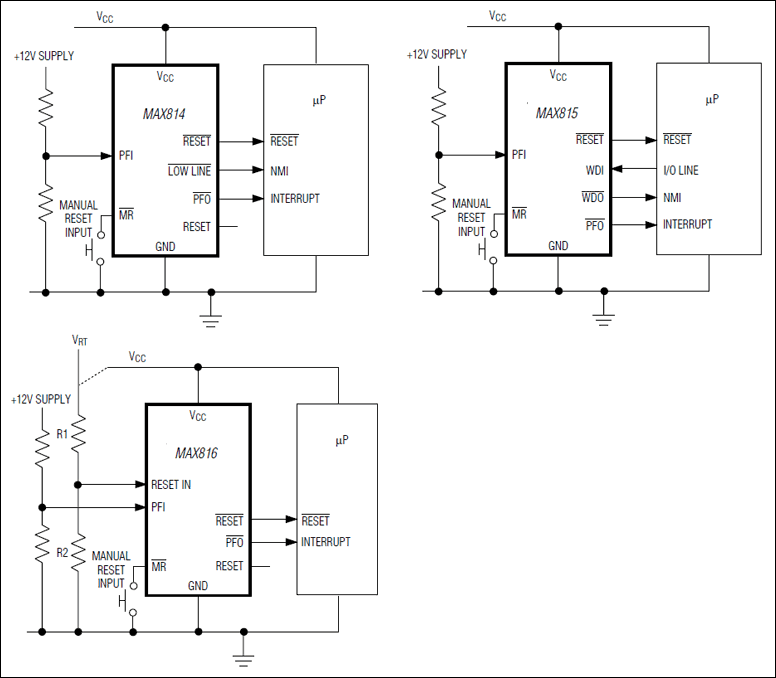

MAX815是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，MAX815是±1%精度、低功耗、+3V与+5V微处理器监控电路，本站介绍了MAX815的封装应用图解、特点和优点、功能等，并给出了与MAX815相关的Maxim元器件型号供参考。

MAX815 - ±1%精度、低功耗、+3V与+5V微处理器监控电路 - 监控电路、电压监测、排序 - 1%精度的微处理器监控IC - 美信半导体

产品概述

The MAX814/MAX815/MAX816 are high-accuracy microprocessor (µP) supervisory circuits that provide power-on reset, watchdog, and power-fail functions. They eliminate manual trimming and improve reliability in critical applications needing high-accuracy reset thresholds. The active-low RESET output is guaranteed to be in the correct state for VCC down to 1V. The reset comparator is designed to ignore fast transients on VCC. Reset thresholds are available for operation with a variety of 3V and 5V supply voltages.

A 75µA maximum supply current makes the MAX814/MAX815/MAX816 ideal for use in portable equipment. All three devices are available in 8-pin DIP and SO packages. See the Selector Table below for a review of features.

关键特性

以下关键特性由Maxim美信半导体提供：

±1% Worst-Case Reset Threshold Accuracy

4.8V, 4.7V, 4.55V, 3.03V, or Adjustable Reset Thresholds

±1% Low-Line Threshold Accuracy (MAX814)60mV Above Reset Threshold

200ms Reset Time Delay

Active-Low RESET Output

Active-High RESET Output (MAX814/MAX816)

75µA Max Supply Current

Guaranteed active-low RESET Valid to VCC = 1V

Manual Reset Input

±2% Power-Fail Comparator

Independent Watchdog with 1.56sec Timeout (MAX815)

Power-Supply Glitch Immunity

8-Pin SO and DIP Packages

热门应用

控制器

精确的µP监控

智能仪表

医疗装置

便携式电池供电设备

机顶盒
