MAX873A|MAX873B - 低功耗、低漂移、+2.5V/+5V/+10V精密电压基准

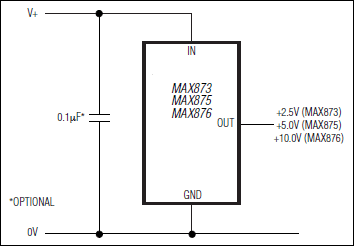

MAX873A|MAX873B是Maxim美信半导体公司的一款电压基准产品，MAX873A|MAX873B是低功耗、低漂移、+2.5V/+5V/+10V精密电压基准，本站介绍了MAX873A|MAX873B的封装应用图解、特点和优点、功能等，并给出了与MAX873A|MAX873B相关的Maxim元器件型号供参考。

MAX873A|MAX873B - 低功耗、低漂移、+2.5V/+5V/+10V精密电压基准 - 电压基准 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX873/MAX875/MAX876 precision 2.5V, 5V, and10V references offer excellent accuracy and very lowpower consumption. Extremely low temperature driftcombined with excellent line and load regulation permitstable operation over a wide range of electrical and environmentalconditions. Operation for the MAX873 is guaranteedwith a +4.5V supply, making the part ideal insystems running from a +5V ±10% supply. Low 10Hz to1kHz noise—typically 3.8µVRMS, 9µVRMS, and 18µVRMS, respectively, for the MAX873, MAX875, MAX876—make the parts suitable for 12-bit data-acquisition systems.

A TRIM pin facilitates adjustment of the reference voltageover a ±6% range, using only a 100kΩ potentiometer. Avoltage output proportional to temperature provides asource for temperature compensation circuits, temperaturewarning circuits, and other applications.

关键特性

以下关键特性由Maxim美信半导体提供：

MAX873/MAX875/MAX876

+2.5V/+5V/+10V Outputs

±1.5mV/±2.0mV/±3.0mV (max) Initial Accuracy

7ppm/°C (max) Temperature Coefficient

450µA (max) Quiescent Current

Low Noise: 3.8µVP-P (typ at 2.5V)

Sources 10mA, Sinks 2mA

15ppm/mA Load Regulation (max)

4ppm/V Line Regulation (max)

Wide Supply Voltage Range, +4.5V to +18V(MAX873)

TEMP Output Proportional to Temperature

热门应用

12位ADC与DAC

数字万用表

低功耗测试设备

便携式数据采集系统
