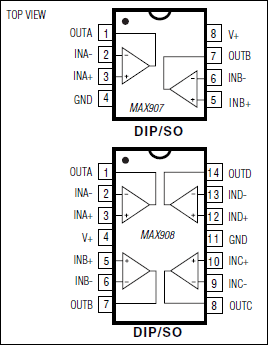

MAX908 - 典型电路框图：
MAX908典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX908介绍

MAX908 - 双/四/单路、高速、超低功耗、单电源TTL比较器

MAX908是Maxim美信半导体公司的一款放大器产品，MAX908是双/四/单路、高速、超低功耗、单电源TTL比较器，本站介绍了MAX908的封装应用图解、特点和优点、功能等，并给出了与MAX908相关的Maxim元器件型号供参考。

MAX908 - 双/四/单路、高速、超低功耗、单电源TTL比较器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX907/MAX908/MAX909 are dual/quad/single,high-speed, ultra-low-power voltage comparatorsdesigned for use in systems powered from a single+5V supply; the MAX909 also accepts dual ±5V supplies.Their 40ns propagation delay (with 5mV inputoverdrive) is achieved with a power consumption ofonly 3.5mW per comparator. The wide input common-moderange extends from 200mV below ground (belowthe negative supply rail for the MAX909) to within 1.5Vof the positive supply rail.

Because they are micropower, high-speed comparatorsthat operate from a single +5V supply and includebuilt-in hysteresis, these devices replace a variety ofolder comparators in a wide range of applications.MAX907/MAX908/MAX909 outputs are TTL-compatible,requiring no external pullup circuitry. All inputs and outputscan be continuously shorted to either supply railwithout damage. These easy-to-use comparators incorporateinternal hysteresis to ensure clean output switchingeven when the devices are driven by a slow-movinginput signal.

The MAX909 features complementary outputs and anoutput latch. A separate supply pin for extending theanalog input range down to -5V is also provided.

The dual MAX907 and single MAX909 are available in8-pin DIP and SO packages, and the quad MAX908 isavailable in 14-pin DIP and SO packages. These comparatorsare ideal for single +5V-supply applicationsthat require the combination of high speed, precision,and ultra-low power dissipation.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • 40ns Propagation Delay
  • 700µA (3.5mW) Supply Current per Comparator
  • Single 4.5V to 5.5V Supply Operation(or ±5V, MAX909 only)
  • Wide Input Range Includes Ground(or -5V, MAX909 only)
  • Low, 500µV Offset Voltage
  • Internal Hysteresis Provides Clean Switching
  • TTL-Compatible Outputs(Complementary on MAX909)
  • Input and Output Short-Circuit Protection
  • Internal Latch (MAX909 only)
    • 热门应用
  • 电池供电系统
  • 高速A/D转换器
  • 高速采样电路
  • 高速V/F转换器
  • 线接收器
  • 门限检测器/鉴别器
  • 过零检测器
