MAX9111 - 单/双路LVDS线接收器，提供超低脉冲偏差，SOT23封装

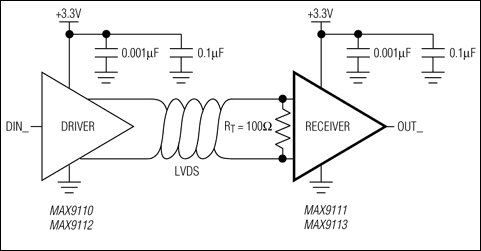

MAX9111是Maxim美信半导体公司的一款电平转换器产品，MAX9111是单/双路LVDS线接收器，提供超低脉冲偏差，SOT23封装，本站介绍了MAX9111的封装应用图解、特点和优点、功能等，并给出了与MAX9111相关的Maxim元器件型号供参考。

MAX9111 - 单/双路LVDS线接收器，提供超低脉冲偏差，SOT23封装 - 电平转换器 - 业内具有最小脉冲偏差的LVDS接收器 - 美信半导体

产品概述

The MAX9111/MAX9113 single/dual low-voltage differential signaling (LVDS) receivers are designed for high-speed applications requiring minimum power consumption, space, and noise. Both devices support switching rates exceeding 500Mbps while operating from a single +3.3V supply, and feature ultra-low 300ps (max) pulse skew required for high-resolution imaging applications such as laser printers and digital copiers.

The MAX9111 is a single LVDS receiver, and the MAX9113 is a dual LVDS receiver.

Both devices conform to the EIA/TIA-644 LVDS standard and convert LVDS to LVTTL/CMOS-compatible outputs. A fail-safe feature sets the outputs high when the inputs are undriven and open, terminated, or shorted. The MAX9111/MAX9113 are available in space-saving 8-pin SOT23 and SO packages. Refer to the MAX9110/MAX9112 data sheet for single/dual LVDS line drivers.

关键特性

以下关键特性由Maxim美信半导体提供：

Low 300ps (max) Pulse Skew for High-Resolution Imaging and High-Speed Interconnect

Space-Saving 8-Pin SOT23 and SO Packages

Pin-Compatible Upgrades to DS90LV018A and DS90LV028A (SO Packages Only)

Guaranteed 500Mbps Data Rate

Low 29mW Power Dissipation at 3.3V

Conform to EIA/TIA-644 Standard

Single +3.3V Supply

Flow-Through Pinout Simplifies PCB Layout

Fail-Safe Circuit Sets Output High for Undriven Inputs

High-Impedance LVDS Inputs when Powered Off

热门应用

背板与互连应用

蜂窝电话基站

时钟/数据分配

数字复印机

激光打印机

LCD显示器

网络路由器和交换机

电信交换设备
