MAX9376 - LVDS/任意逻辑至LVPECL/LVDS、双路电平转换器

MAX9376是Maxim美信半导体公司的一款电平转换器产品，MAX9376是LVDS/任意逻辑至LVPECL/LVDS、双路电平转换器，本站介绍了MAX9376的封装应用图解、特点和优点、功能等，并给出了与MAX9376相关的Maxim元器件型号供参考。

MAX9376 - LVDS/任意逻辑至LVPECL/LVDS、双路电平转换器 - 电平转换器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX9376 is a fully differential, high-speed, LVDS/anything-to-LVPECL/LVDS dual translator designed for signal rates up to 2GHz. One channel is LVDS/anything-to-LVPECL translator and the other channel is LVDS/anything-to-LVDS translator. The MAX9376's extremely low propagation delay and high speed make it ideal for various high-speed network routing and backplane applications.

The MAX9376 accepts any differential input signal within the supply rails and with minimum amplitude of 100mV. Inputs are fully compatible with the LVDS, LVPECL, HSTL, and CML differential signaling standards. LVPECL outputs have sufficient current to drive 50Ω transmission lines. LVDS outputs conform to the ANSI EIA/TIA-644 LVDS standard.

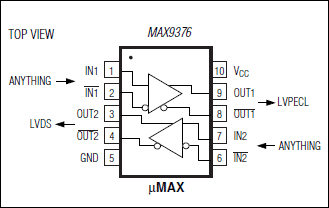

The MAX9376 is available in a 10-pin µMAX® package and operates from a single +3.3V supply over the -40°C to +85°C temperature range.

关键特性

以下关键特性由Maxim美信半导体提供：

Guaranteed 2GHz Switching Frequency

Accepts LVDS/LVPECL/Anything Inputs

421ps (typ) Propagation Delays

30ps (max) Pulse Skew

2psRMS (max) Random Jitter

Minimum 100mV Differential Input to Guarantee AC Specifications

Temperature-Compensated LVPECL Output

+3.0V to +3.6V Power-Supply Operating Range

> 2kV ESD Protection (Human Body Model)

热门应用

背板逻辑标准转换

DLC

DSLAM背板

局域网(LAN)

LVDS至LVPECL、LVPECL至LVDS转换

上/下变频器

WAN
