MXD1210技术文档下载：

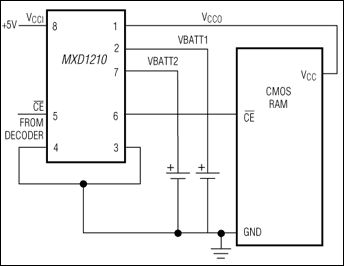

MXD1210 - 典型电路框图：

MXD1210 - 非易失RAM控制器

MXD1210是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，MXD1210是非易失RAM控制器，本站介绍了MXD1210的封装应用图解、特点和优点、功能等，并给出了与MXD1210相关的Maxim元器件型号供参考。

MXD1210 - 非易失RAM控制器 - 监控电路、电压监测、排序 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MXD1210 nonvolatile RAM controller is a very low-power CMOS circuit that converts standard (volatile) CMOS RAM into nonvolatile memory. It also continually monitors the power supply to provide RAM write protection when power to the RAM is in a marginal (out-of-tolerance) condition. When the power supply begins to fail, the RAM is write protected, and the device switches to battery-backup mode.

关键特性

以下关键特性由Maxim美信半导体提供：

Battery Backup

Memory Write Protection

230µA Operating-Mode Quiescent Current

2nA Backup-Mode Quiescent Current

Battery Freshness Seal

Optional Redundant Battery

Low Forward-Voltage Drop on VCC Supply Switch

5% or 10% Power-Fail Detection Options

Tests Battery Condition During Power-Up

8-Pin SO Available
