MAX11262 - 14-Bit, 500ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin μMAX

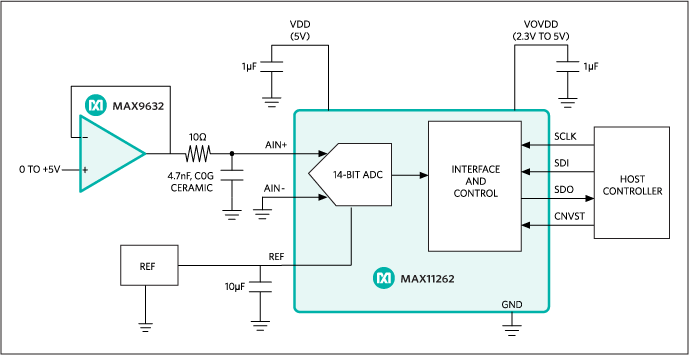

MAX11262是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX11262是14-Bit, 500ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin μMAX，本站介绍了MAX11262的封装应用图解、特点和优点、功能等，并给出了与MAX11262相关的Maxim元器件型号供参考。
MAX11262 - 14-Bit, 500ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin μMAX - 数据转换器和采样-保持电路 - SAR ADC in Industry-Standard 10-Pin Package Offers 85.4dB SNR - 美信半导体
产品概述
The MAX11262 is a 14-bit, 500ksps, +5V unipolar pseudo-differential input SAR ADC offering excellent AC and DC performance in a small standard package.
This ADC typically achieves 85.4dB SNR, -102dB THD, and ±0.2 LSB INL (typ), ±0.12 LSB DNL (typ). The MAX11262 guarantees 14-bit no-missing codes.
The MAX11262 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic.
The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.
The MAX11262 is offered in a 10-pin, 3mm x 5mm, µMAX® package and is specified over the -40°C to +85°C temperature range.
关键特性
以下关键特性由Maxim美信半导体提供：High DC/AC Accuracy Improves Measurement Quality 14-Bit Resolution with No Missing Codes 500ksps Throughput Rates without Pipeline Delay/Latency 85.4dB SNR and -102dB THD at 10kHz0.1 LSBRMS Input-Referred Noise ±0.12 LSB DNL (typ) and ±0.2 LSB INL (typ) Wide Supply Range and Low Power Simplify Power-Supply Design5V Analog Supply 2.3V to 5V Digital Supply 24mW Power Consumption at 500ksps 10µA in Shutdown Mode Multi-Industry Standard Serial Interface and Small Package Reduce Size SPI/QSPI™/MICROWIRE®/DSP-CompatibleSerial Interface 3mm x 5mm, Tiny 10-Pin µMAX Package热门应用
自动测试设备工业过程控制医疗仪表窄带接收机测试与测量
