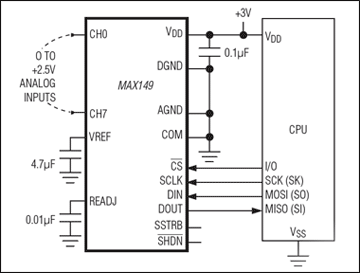

MAX149 - 典型电路框图：
MAX149典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX149介绍

MAX149 - +2.7V至+5.25V、低功耗、8通道、串行10位ADC

MAX149是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX149是+2.7V至+5.25V、低功耗、8通道、串行10位ADC，本站介绍了MAX149的封装应用图解、特点和优点、功能等，并给出了与MAX149相关的Maxim元器件型号供参考。

MAX149 - +2.7V至+5.25V、低功耗、8通道、串行10位ADC - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX148/MAX149 10-bit data-acquisition systems combine an 8-channel multiplexer, high-bandwidthtrack/hold, and serial interface with high conversion speed and low power consumption. They operate from a single +2.7V to +5.25V supply, and sample to 133ksps. Both devices’ analog inputs are software configurable for unipolar/bipolar and single-ended/differential operation.

The 4-wire serial interface connects directly to SPI/QSPI™ and MICROWIRE™ devices without external logic. A serial-strobe output allows direct connection to TMS320-family digital signal processors. The MAX148/MAX149 use either the internal clock or an external serial-interface clock to perform successive-approximation analog-to-digital conversions.

The MAX149 has an internal 2.5V reference, while the MAX148 requires an external reference. Both parts have a reference-buffer amplifier with a ±1.5% voltage-adjustment range.

These devices provide a hard-wired active-low SHDN pin and a software-selectable power-down, and can be programmed to automatically shut down at the end of a conversion. Accessing the serial interface automatically powers up the MAX148/MAX149, and the quick turn-on time allows them to be shut down between all conversions. This technique can cut supply current to under 60µA at reduced sampling rates.

The MAX148/MAX149 are available in 20-pin PDIP and 20-pin SSOP packages.

For 4-channel versions of these devices, see the MAX1248/MAX1249 data sheet.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • 8-Channel Single-Ended or 4-Channel Differential Inputs
  • Single-Supply Operation: +2.7V to +5.25V
  • Internal 2.5V Reference (MAX149)
  • Low Power:
  • 1.2mA (133ksps, 3V Supply)
  • 54µA (1ksps, 3V Supply)
  • 1µA (Power-Down Mode)
  • SPI/QSPI/MICROWIRE/TMS320-Compatible 4-Wire Serial Interface
  • Software-Configurable Unipolar or Bipolar Inputs
  • 20-Pin PDIP/SSOP Packages
    • 热门应用
  • 电池供电仪表
  • 数据采集
  • 医疗仪器
  • 笔输入量化器
  • 便携式数据记录
  • 过程控制
