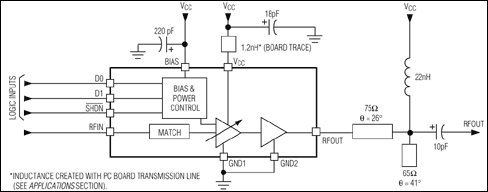

MAX2240 - 典型电路框图：
MAX2240典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX2240介绍

MAX2240 - 2.5GHz、+20dBm功率放大器IC，UCSP封装

MAX2240是Maxim美信半导体公司的一款无线与RF产品，MAX2240是2.5GHz、+20dBm功率放大器IC，UCSP封装，本站介绍了MAX2240的封装应用图解、特点和优点、功能等，并给出了与MAX2240相关的Maxim元器件型号供参考。

MAX2240 - 2.5GHz、+20dBm功率放大器IC，UCSP封装 - 无线与RF - 业内尺寸最小的Bluetooth PA，提供数字功率控制 - 美信半导体

产品概述

The MAX2240 single-supply, low-voltage power amplifier (PA) IC is designed specifically for applications in the 2.4GHz to 2.5GHz frequency band. The PA is compliant with Bluetooth®, HomeRF, and 802.11 standards, as well as other FSK modulation systems. The PA provides a nominal +20dBm (100mW) output power in the highest power mode.

The PA includes a digital power control circuit to greatly simplify control of the output power. Four digitally controlled output power levels are provided: from +3dBm to +20dBm. A digital input controls the active or shutdown operating modes of the PA. In the shutdown mode, the current reduces to 0.5µA.

The IC integrates the RF input and interstage matching to simplify application of the IC. Temperature and supply-independent biasing are also included to provide stable performance under all operating conditions.

The IC operates from a +2.7V to +5V single-supply voltage. No negative bias voltage is required. Current consumption is a modest 105mA at the highest power level.

The part is packaged in the UCSP™ package significantly reducing the required PC board area. The chip occupies only a 1.56mm x 1.56mm area. The 3 x 3 array of solder bumps are spaced with a 0.5mm bump pitch.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • 2.4GHz to 2.5GHz Frequency Range
  • High +20dBm Output Power
  • 2-Bit Digital Power Control: Four Output Levels
  • Integrated Input Match to 50Ω
  • Low 105mA Operating Current
  • 0.5µA Low-Power Shutdown Mode Current
  • +2.7V to +5V Single-Supply Operation
  • Miniature Chip-Scale Package (1.56mm x 1.56mm)
    • 热门应用
  • 2.4GHz ISM专用无线装置
  • 802.11 FHSS WLAN
  • Bluetooth®
  • HomeRF
