MAX3311 - 460kbps、1µA电源电流、RS-232兼容收发器，µMAX封装

MAX3311是Maxim美信半导体公司的一款驱动器-接收器产品，MAX3311是460kbps、1µA电源电流、RS-232兼容收发器，µMAX封装，本站介绍了MAX3311的封装应用图解、特点和优点、功能等，并给出了与MAX3311相关的Maxim元器件型号供参考。

MAX3311 - 460kbps、1µA电源电流、RS-232兼容收发器，µMAX封装 - 驱动器-接收器 - 具有±15kV ESD保护的RS-232收发器，采用µMAX封装，有效节省电路板空间 - 美信半导体

产品概述

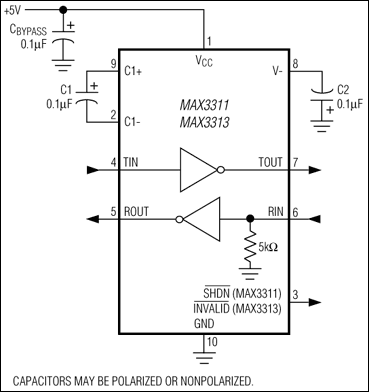

The MAX3311/MAX3313 are low-power, +5V EIA/TIA-232-compatible transceivers. Both devices have one transmitter and one receiver. The transceivers have a proprietary low-dropout transmitter output stage enabling RS-232-compatible operation from a +5V supply with a single inverting charge pump. These devices require only three 0.1µF capacitors and will run at data rates up to 460kbps while maintaining RS-232-compatible output levels.

The MAX3311 features a 1µA shutdown mode. In shutdown the device turns off the charge pump, pulls V- to ground, and the transmitter output is disabled. The MAX3313 features an active-low INVALID output that asserts high when an active RS-232 cable signal is connected, signaling to the host that a peripheral is connected to the communication port.

关键特性

以下关键特性由Maxim美信半导体提供：

1µA Low-Power Shutdown (MAX3311)

Active-low INVALID Output (MAX3313)

Receiver Active in Shutdown (MAX3311)

Single Transceiver (1Tx/1Rx) in 10-Pin µMAX

RS-232-Compatible Operation

热门应用

蜂窝电话

数码相机

数字电视(接收机，机顶盒)

全球定位系统(GPS)

调制解调器

寻呼机

笔输入掌上电脑

销售终端机(POS)
