MAX349 - 串行控制、低电压、8通道和双4通道多路复用器

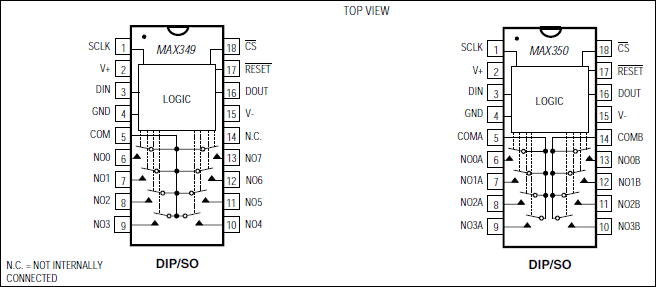

MAX349是Maxim美信半导体公司的一款保护器产品，MAX349是串行控制、低电压、8通道和双4通道多路复用器，本站介绍了MAX349的封装应用图解、特点和优点、功能等，并给出了与MAX349相关的Maxim元器件型号供参考。

MAX349 - 串行控制、低电压、8通道和双4通道多路复用器 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX349/MAX350 are 8-channel and dual 4-channel serially controlled multiplexers (muxes). These muxes conduct equally well in either direction. On-resistance (100Ω max) is matched between switches to 16Ω max and is flat (10Ω max) over the specified signal range.

These CMOS devices can operate continuously with dual power supplies ranging from ±2.7V to ±8V or a single supply between +2.7V and +16V. Each mux can handle rail-to-rail analog signals. The off-leakage current is only 0.1nA at +25°C or 5nA at +85°C.

Upon power-up, all switches are off and the internal shift registers are reset to zero.

The serial interface is compatible with SPI™/QSPI™ and Microwire™. Functioning as a shift register, it allows data (at DIN) to be clocked in synchronously with the rising edge of clock (SCLK). The shift register's output (DOUT) enables several MAX349s or MAX350s to be daisy chained.

All digital inputs have 0.8V or 2.4V logic thresholds, ensuring both TTL and CMOS-logic compatibility when using ±5V supplies or a single +5V supply.

关键特性

以下关键特性由Maxim美信半导体提供：

SPI/QSPI, Microwire-Compatible Serial Interface

8 Separately Controlled SPST Switches

Single 8-to-1 Mux (MAX349)

Dual 4-to-1 Mux (MAX350)

100Ω Signal Paths with ±5V Supplies

Rail-to-Rail Signal Handling

Asynchronous RESET Input

±2.7V to ±8V Dual Supplies

+2.7V to +16V Single Supply

> 2kV ESD Protection per Method 3015.7

TTL/CMOS-Compatible Inputs (with +5V or ±5V Supplies)

热门应用

音频信号切换

自动测试设备(ATE)

航空电子

工业与过程控制系统

网络

串行数据采集系统
