MAX355 - 故障保护模拟多路复用器

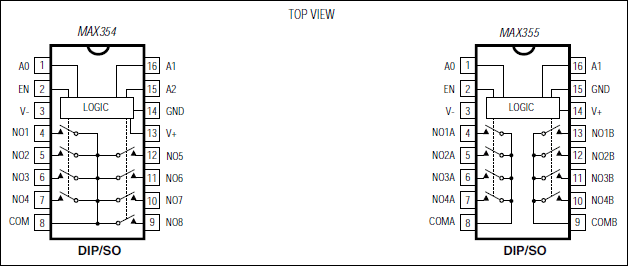

MAX355是Maxim美信半导体公司的一款保护器产品，MAX355是故障保护模拟多路复用器，本站介绍了MAX355的封装应用图解、特点和优点、功能等，并给出了与MAX355相关的Maxim元器件型号供参考。

MAX355 - 故障保护模拟多路复用器 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX354/MAX355 fault-protected multiplexers (muxes) use a series N-channel, P-channel, N-channel structure that protects the devices from overvoltage up to 40V beyond the supply rails during power-up, power-down, and fault conditions. The MAX354/MAX355 also protect sensitive circuit components against voltages near or beyond the normal supplies.

The MAX354 single 8-channel mux and the MAX355 dual 4-channel mux protect analog signals while operating from a single 4.5V to 36V supply or ±4.5V to ±18V dual supplies. These muxes have 350Ω on-resistance and can be used for demultiplexing as well as multiplexing. Input leakage current is less than 0.5nA at +25°C and less than 5nA at +85°C.

All digital inputs have 0.8V and 2.4V logic thresholds, ensuring both TTL and CMOS logic compatibility without pull-up resistors. Break-before-make operation is guaranteed and power consumption is less than 1.5mW.

关键特性

以下关键特性由Maxim美信半导体提供：

350Ω Max On-Resistance

Improved 2nd Source for MAX358/MAX359 and DG458/DG459

Pin Compatible with ADG508F/ADG509F

All Switches Off with Supplies Off

On Switch Turns Off with Overvoltage

Output Clamps at 1.5V Below Supply Rails

0.5nA Max Input Leakage at +25°C (5nA at +85°C)

No Power-Up Sequencing Required

TTL and CMOS-Logic Compatibility

热门应用

自动测试设备(ATE)

航空电子

数据采集

工业与过程控制

冗余/备份系统

信号路由
