MAX383|MAX383B - 高精度、低电压、SPST、CMOS模拟开关

MAX383|MAX383B是Maxim美信半导体公司的一款宽带交换产品，MAX383|MAX383B是高精度、低电压、SPST、CMOS模拟开关，本站介绍了MAX383|MAX383B的封装应用图解、特点和优点、功能等，并给出了与MAX383|MAX383B相关的Maxim元器件型号供参考。

MAX383|MAX383B - 高精度、低电压、SPST、CMOS模拟开关 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

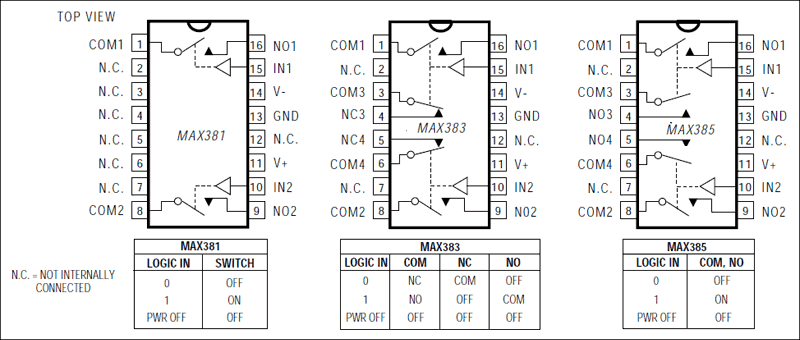

The MAX381/MAX383/MAX385 are precision, low-voltage analog switches. The single-pole single-throw MAX381 and double-pole single-throw MAX385 dual switches are normally open. The single-pole double-throw MAX383 has two normally open and two normally closed poles. All three parts offer low on-resistance (less than 35Ω), guaranteed to match to within 2Ω between channels and to remain flat over the specified analog signal range (4Ω max). They also offer low leakage (less than 250pA at +25°C and less than 2.5nA at +85°C) and fast switching (turn-on time less than 175ns and turn-off time less than 100ns).

The MAX381/MAX383/MAX385 are fabricated with Maxim's low-voltage silicon-gate process for high system accuracy. Design improvements guarantee extremely low charge injection (< 5pC) and low power consumption (< 10µW).

These monolithic switches operate with a single positive supply (+3V to +15V) or with split supplies (±3V to ±8V) while retaining CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading.

关键特性

以下关键特性由Maxim美信半导体提供：

Single-Supply Operation (+3V to +15V)

Bipolar-Supply Operation (±3V to ±8V)

Pin-Compatible with DG401/DG403/DG405

Low On-Resistance, 20Ω Typical (35Ω Max)

Guaranteed Matched On-Resistance Between Channels, < 2Ω

Guaranteed Flat On-Resistance over Specified Analog Signal Range, < 4Ω

Guaranteed Charge Injection, < 5pC

Guaranteed Off-Channel Leakage, < 2.5nA at +85°C

TTL/CMOS-Logic Compatible with 3V, 5V, ±3V, and ±5V Supplies

Rail-to-Rail Analog Signal Handling Capability

热门应用

音频信号切换

电池供电应用

通信系统

引导与控制系统

平面显示器

军用无线装置

PBX、PABX

采样保持电路

测试设备
