MAX392 - 高精度、四路、SPST模拟开关

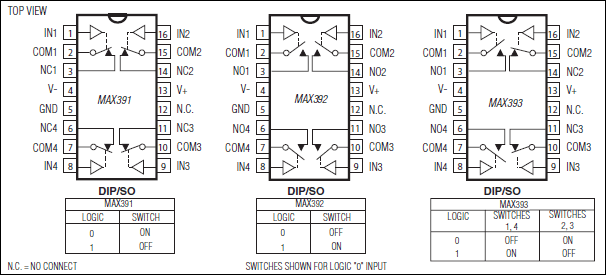

MAX392是Maxim美信半导体公司的一款宽带交换产品，MAX392是高精度、四路、SPST模拟开关，本站介绍了MAX392的封装应用图解、特点和优点、功能等，并给出了与MAX392相关的Maxim元器件型号供参考。

MAX392 - 高精度、四路、SPST模拟开关 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX391/MAX392/MAX393 are precision, quad,single-pole/single-throw (SPST) analog switchesdesigned to operate at +3V, +5V, or ±5V. The MAX391has four normally closed (NC) switches, and theMAX392 has four normally open (NO) switches. TheMAX393 has two NO and two NC switches. All threedevices offer low leakage (100pA max) and fast switchingspeeds (tON ≤ 130ns, tOFF ≤ 75ns). Power consumption is just 1µW—ideal for battery-operated equipment.All devices operate from a single +3V to +15Vsupply or from dual ±3.0V to ±8V supplies.

With ±5V supplies, the MAX391/MAX392/MAX393 offerguaranteed 2Ω max channel-to-channel matching, 30Ωmax on-resistance (RON), and 4Ω max RON flatnessover the specified range.

These switches are also fully specified for single +5Voperation, with 2Ω max RON match, 60Ω max RON, and 6Ω max flatness.

These low-voltage switches also offer 5pC max chargeinjection, and ESD protection is greater than 2000V, permethod 3015.7.

关键特性

以下关键特性由Maxim美信半导体提供：

Low On-Resistance, 20Ω Typical

Guaranteed On-Resistance Match Between Channels, < 2Ω

Guaranteed On-Resistance Flatness Over Signal Range, 4Ω Max

Guaranteed Charge Injection, < 5pC

Improved Leakage Over Temperature, < 2.5nA at +85°C

Electrostatic Discharge > 2000V per Method 3015.7

Single-Supply Operation (+3V to +15V) Bipolar-Supply Operation (±3V to ±8V)

Low Power Consumption, < 1µW

TTL/CMOS-Logic Compatible

热门应用

±5V DAC与ADC

音频与视频开关

电池供电应用

通信系统

引导与控制系统

平面显示器

军用无线装置

PBX、PABX

采样保持电路

测试设备
