MAX8885 - 150mA、低压差线性稳压器，带有电源就绪指示输出

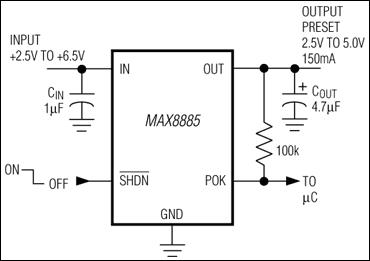

MAX8885是Maxim美信半导体公司的一款线性调节器产品，MAX8885是150mA、低压差线性稳压器，带有电源就绪指示输出，本站介绍了MAX8885的封装应用图解、特点和优点、功能等，并给出了与MAX8885相关的Maxim元器件型号供参考。

MAX8885 - 150mA、低压差线性稳压器，带有电源就绪指示输出 - 线性调节器 - SOT23低压差稳压器，有效延长电池寿命 - 美信半导体

产品概述

The MAX8885 low-dropout (LDO) linear regulator operates from a +2.5V to +6.5V input voltage range and delivers up to 150mA. It uses a P-channel MOSFET pass transistor to allow a low 85µA supply current-which is independent of the load-as well as LDO voltage. The MAX8885 is optimized to operate with low-cost, high-ESR output capacitors such as small case-size tantalum capacitors. It is ideal for cost-sensitive portable equipment such as PCS and cellular phones. For a pin-compatible, functionally equivalent device for use with a low-ESR, ceramic output capacitor, refer to the MAX8875 data sheet.

The MAX8885 features a power-OK output that indicates when the output is out of regulation, and is available in preset output voltage versions of 5.0V, 3.3V, 3.0V, 2.7V, and 2.5V. Other features include 1µA (max) shutdown current, short-circuit protection, thermal shutdown protection, and reverse-battery protection. The MAX8885 is available in a miniature 5-pin SOT23 package.

关键特性

以下关键特性由Maxim美信半导体提供：

Optimized for Low-Cost Tantalum Capacitors

Pin Compatible with MIC5206

Undervoltage Power-OK Output

Preset Output Voltages (±1% accuracy)

Guaranteed 150mA Output Current

85µA No-Load Supply Current

Low 110mV Dropout at 100mA Load (165mV at 150mA load)

Thermal-Overload and Short-Circuit Protection

Reverse-Battery Protection

60dB PSRR at 100Hz

1µA max Shutdown Current

热门应用

蜂窝电话

无绳电话

电子规划器

手持式仪表(PDA、掌上电脑)

调制解调器

掌上电脑

PCMCIA卡

PCS电话
