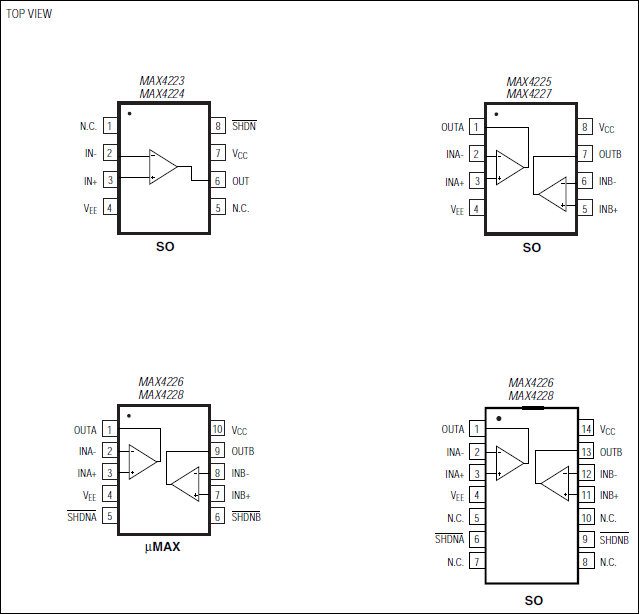

MAX4228 - 典型电路框图：
MAX4228典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX4228介绍

MAX4228 - 1GHz、低功耗、SOT23封装、电流反馈放大器，带有关断

MAX4228是Maxim美信半导体公司的一款视频芯片产品，MAX4228是1GHz、低功耗、SOT23封装、电流反馈放大器，带有关断，本站介绍了MAX4228的封装应用图解、特点和优点、功能等，并给出了与MAX4228相关的Maxim元器件型号供参考。

MAX4228 - 1GHz、低功耗、SOT23封装、电流反馈放大器，带有关断 - 视频芯片 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4223-MAX4228 current-feedback amplifiers combine ultra-high-speed performance, low distortion, and excellent video specifications with low-power operation. The MAX4223/MAX4224/MAX4226/MAX4228 have a shutdown feature that reduces power-supply current to 350µA and places the outputs into a high-impedance state. These devices operate with dual supplies ranging from ±2.85V to ±5.5V and provide a typical output drive current of 80mA. The MAX4223/MAX4225/MAX4226 are optimized for a closed-loop gain of +1 (0dB) or more and have a -3dB bandwidth of 1GHz, while the MAX4224/MAX4227/MAX4228 are compensated for a closed-loop gain of +2 (6dB) or more, and have a -3dB bandwidth of 600MHz (1.2GHz gain-bandwidth product).

The MAX4223-MAX4228 are ideal for professional video applications, with differential gain and phase errors of 0.01% and 0.02°, 0.1dB gain flatness of 300MHz, and a 1100V/µs slew rate. Total harmonic distortion (THD) of -60dBc (10MHz) and an 8ns settling time to 0.1% suit these devices for driving high-speed analog-to-digital inputs or for data-communications applications. The low-power shutdown mode on the MAX4223/MAX4224/MAX4226/MAX4228 makes them suitable for portable and battery-powered applications. Their high output impedance in shutdown mode is excellent for multiplexing applications.

The single MAX4223/MAX4224 are available in space-saving 6-pin SOT23 packages. All devices are available in the extended -40°C to +85°C temperature range.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Ultra-High Speed and Fast Settling Time:
  • 1GHz -3dB Bandwidth (MAX4223, Gain = +1)
  • 600MHz -3dB Bandwidth (MAX4224, Gain = +2)
  • 1700V/µs Slew Rate (MAX4224)
  • 5ns Settling Time to 0.1% (MAX4224)
  • Excellent Video Specifications (MAX4223):
  • Gain Flatness of 0.1dB to 300MHz
  • 0.01%/0.02° DG/DP Errors
  • Low Distortion:
  • -60dBc THD (fc = 10MHz)
  • 42dBm Third-Order Intercept (f = 30MHz)
  • 6.0mA Quiescent Supply Current (per amplifier)
  • Shutdown Mode:
  • 350µA Supply Current (per amplifier)
  • 100kΩ Output Impedance
  • High Output Drive Capability:
  • 80mA Output Current
  • Drives up to 4 Back-Terminated 75Ω Loads to ±2.5V while Maintaining Excellent Differential Gain/Phase Characteristics
  • Available in Tiny 6-Pin SOT23 and 10-Pin µMAX® Packages
    • 热门应用
  • ADC输入缓冲器
  • 数据通信
  • 射频接收器
  • 视频线驱动器
  • 视频多路复用
