MAX4304 - 740MHz、低噪声、低失真运算放大器，SOT23-5封装

MAX4304是Maxim美信半导体公司的一款视频芯片产品，MAX4304是740MHz、低噪声、低失真运算放大器，SOT23-5封装，本站介绍了MAX4304的封装应用图解、特点和优点、功能等，并给出了与MAX4304相关的Maxim元器件型号供参考。

MAX4304 - 740MHz、低噪声、低失真运算放大器，SOT23-5封装 - 视频芯片 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4104/MAX4105/MAX4304/MAX4305 op amps feature ultra-high speed, low noise, and low distortion in a SOT23 package. The unity-gain-stable MAX4104 requires only 20mA of supply current while delivering 625MHz bandwidth and 400V/µs slew rate. The MAX4304, compensated for gains of +2V/V or greater, delivers a 730MHz bandwidth and a 1000V/µs slew rate. The MAX4105 is compensated for a minimum gain of +5V/V and delivers a 410MHz bandwidth and a 1400V/µs slew rate. The MAX4305 has +10V/V minimum gain compensation and delivers a 340MHz bandwidth and a 1400V/µs slew rate.

Low voltage noise density of 2.1nV/√Hz and -88dBc spurious-free dynamic range make these devices ideal for low-noise/low-distortion video and telecommunications applications. These op amps also feature a wide output voltage swing of ±3.7V and ±70mA output current- drive capability. For space-critical applications, they are available in a miniature 5-pin SOT23 package.

关键特性

以下关键特性由Maxim美信半导体提供：

Low 2.1nV/√Hz Voltage Noise Density

Ultra-High 740MHz -3dB Bandwidth (MAX4304, AVCL = 2V/V)

100MHz 0.1dB Gain Flatness (MAX4104/4105)

1400V/µs Slew Rate (MAX4105/4305)

-88dBc SFDR (5MHz, RL = 100Ω) (MAX4104/4304)

High Output Current Drive: ±70mA

Low Differential Gain/Phase Error: 0.01%/0.01°(MAX4104/4304)

Low ±1mV Input Offset Voltage

Available in Space-Saving 5-Pin SOT23 Package

热门应用

有源滤波器

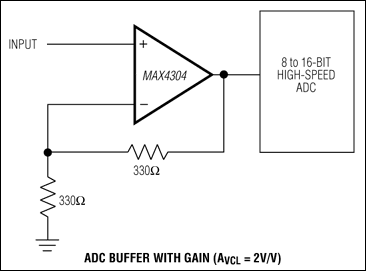

ADC输入缓冲器

脉冲/射频电信应用

超声

视频ADC前置放大器

视频缓冲器与线缆驱动器
