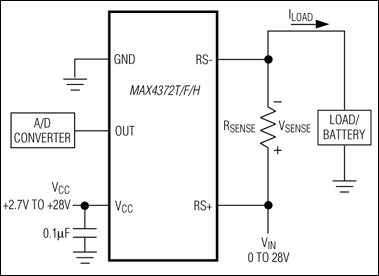

MAX4372F|MAX4372H|MAX4372T - 典型电路框图：
MAX4372F|MAX4372H|MAX4372T典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX4372F|MAX4372H|MAX4372T介绍

MAX4372F|MAX4372H|MAX4372T - 低成本、UCSP/SOT23封装、微功耗、高边电流检测放大器，带有电压输出

MAX4372F|MAX4372H|MAX4372T是Maxim美信半导体公司的一款美信芯片产品，MAX4372F|MAX4372H|MAX4372T是低成本、UCSP/SOT23封装、微功耗、高边电流检测放大器，带有电压输出，本站介绍了MAX4372F|MAX4372H|MAX4372T的封装应用图解、特点和优点、功能等，并给出了与MAX4372F|MAX4372H|MAX4372T相关的Maxim元器件型号供参考。

MAX4372F|MAX4372H|MAX4372T - 低成本、UCSP/SOT23封装、微功耗、高边电流检测放大器，带有电压输出 - 美信芯片 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4372 low-cost, precision, high-side current-sense amplifier is available in a tiny, space-saving SOT23-5-pin package. Offered in three gain versions (T = 20V/V, F = 50V/V, and H = 100V/V), this device operates from a single 2.7V to 28V supply and consumes only 30µA. It features a voltage output that eliminates the need for gain-setting resistors and is ideal for today's notebook computers, cell phones, and other systems where battery/DC current monitoring is critical.

High-side current monitoring is especially useful in battery-powered systems since it does not interfere with the ground path of the battery charger. The input common-mode range of 0 to 28V is independent of the supply voltage and ensures that the current-sense feedback remains viable even when connected to a2-cell battery pack in deep discharge.

The user can set the full-scale current reading by choosing the device (T, F, or H) with the desired voltage gain and selecting the appropriate external senseresistor. This capability offers a high level of integration and flexibility, resulting in a simple and compact current-sense solution. For higher bandwidth applications, refer to the MAX4173T/F/H data sheet.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Low-Cost, Compact Current-Sense Solution
  • 30µA Supply Current
  • 2.7V to 28V Operating Supply
  • 0.18% Full-Scale Accuracy
  • 0.3mV Input Offset Voltage
  • Low 1.5Ω Output Impedance
  • Three Gain Versions Available
  • 20V/V (MAX4372T)
  • 50V/V (MAX4372F)
  • 100V/V (MAX4372H)
  • High Accuracy +2V to +28V Common-Mode Range, Functional Down to 0V, Independent of Supply Voltage
  • Available in a Space-Saving 5-Pin SOT23 Package and 3 x 2 UCSP™ (1mm x 1.5mm) Package
    • 热门应用
  • 蜂窝电话
  • 通用系统/板级电流监视
  • 笔记本电脑
  • 便携式电池供电系统
  • 电源管理系统
  • 精密电流源
  • 智能电池组/充电器
