产品概述

The MAX4412 single and MAX4413 dual operational amplifiers are unity-gain-stable devices that combine high-speed performance, low supply current, and ultra-small packaging. Both devices operate from a single +2.7V to +5.5V supply, have rail-to-rail outputs, and exhibit a common-mode input voltage range that extends from 100mV below ground to within +1.5V of the positive supply rail.

The MAX4412/MAX4413 achieve a 500MHz -3dB bandwidth and a 140V/µs slew rate while consuming only 1.7mA of supply current per amplifier. This makes the MAX4412/MAX4413 ideal for low-power/low-voltage, high-speed portable applications such as video, communications, and instrumentation.

For systems requiring tighter specifications, Maxim offers the MAX4414–MAX4419 family of operational amplifiers. The MAX4414–MAX4419 are laser trimmed versions of the MAX4412/MAX4413 and include compensated and uncompensated devices.

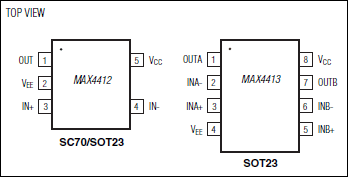

The MAX4412 is available in ultra-small 5-pin SC70 and SOT23 packages, while the MAX4413 is available in a space-saving 8-pin SOT23.

关键特性

以下关键特性由Maxim美信半导体提供：

Ultra-Low 1.7mA Supply Current

Low Cost

Single +3V/+5V Operation

High Speed

500MHz -3dB Bandwidth

50MHz 0.1dB Gain Flatness

140V/µs Slew Rate

Rail-to-Rail Outputs

Input Common-Mode Range Extends Beyond VEE

Low Differential Gain/Phase: 0.01%/0.03°

Low Distortion at 5MHz

-93dBc SFDR

0.003% Total Harmonic Distortion

Ultra-Small SC70 and SOT23 Packages

热门应用

音频系统

基带应用

电池供电应用

遥控钥匙

便携式通信

视频线驱动器
