MAX4556 - 加载-感应开关

MAX4556是Maxim美信半导体公司的一款保护器产品，MAX4556是加载-感应开关，本站介绍了MAX4556的封装应用图解、特点和优点、功能等，并给出了与MAX4556相关的Maxim元器件型号供参考。

MAX4556 - 加载-感应开关 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

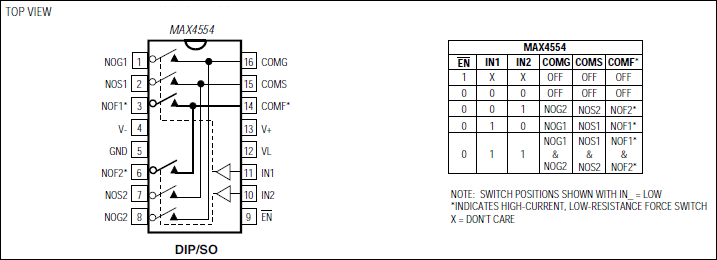

The MAX4554/MAX4555/MAX4556 are CMOS analog ICs configured as force-sense switches for Kelvin sensing in automated test equipment (ATE). Each part contains high-current, low-resistance switches for forcing current, and higher resistance switches for sensing a voltage or switching guard signals. The MAX4554 contains two force switches, two sense switches, and two guard switches configured as two triple-pole/single-throw (3PST) normally open (NO) switches. The MAX4555 contains four independent single-pole/single-throw (SPST) normally closed (NC) switches, two force switches, and two sense switches. The MAX4556 contains three independent single-pole/double-throw (SPDT) switches, of which one is a force switch and two are sense switches.

These devices operate from a single supply of +9V to +40V or dual supplies of ±4.5V to ±20V. On-resistance (6Ω max) is matched between switches to 1Ω max. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 0.25nA at +25°C and 2.5nA at +85°C. The MAX4554 is also fully specified for +20V and -10V operation.

All digital inputs have +0.8V and +2.4V logic thresholds, ensuring both TTL- and CMOS-logic compatibility.

关键特性

以下关键特性由Maxim美信半导体提供：

6Ω Force Signal Paths (±15V Supplies)

1Ω Force Signal Matching (±15V Supplies)

60Ω Sense-Guard Signal Paths (±15V Supplies)

8Ω Sense-Guard Signal Matching (±15V Supplies)

Rail-to-Rail Signal Handling

Break-Before-Make Switching (MAX4556)

tON and tOFF = 275ns (±15V Supplies)

Low 1µA Power Consumption

>2kV ESD Protection per Method 3015.7

TTL/CMOS-Compatible Inputs

热门应用

带有环回的ADSL

自动测试设备(ATE)

自动校准电路

校准器

精密电源
