MAX4619 - 高速、低电压、CMOS模拟多路复用器/开关

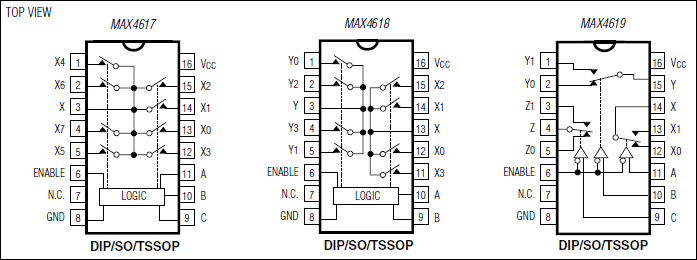

MAX4619是Maxim美信半导体公司的一款宽带交换产品，MAX4619是高速、低电压、CMOS模拟多路复用器/开关，本站介绍了MAX4619的封装应用图解、特点和优点、功能等，并给出了与MAX4619相关的Maxim元器件型号供参考。

MAX4619 - 高速、低电压、CMOS模拟多路复用器/开关 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4617/MAX4618/MAX4619 are high-speed, low-voltage, CMOS analog ICs configured as an 8-channel multiplexer (MAX4617), two 4-channel multiplexers (MAX4618), and three single-pole/double-throw (SPDT) switches (MAX4619).

These CMOS devices can operate continuously with a +2V to +5.5V single supply. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at TA = +25°C and 10nA at TA = +85°C.

All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply.

关键特性

以下关键特性由Maxim美信半导体提供：

Fast Switching Times

15ns tON

10ns tOFF

Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4581/MAX4582/MAX4583

Guaranteed On-Resistance

10Ω max (+5V Supply)

20Ω max (+3V Supply)

Guaranteed 1Ω On-Resistance Match Between Channels (single +5V supply)

Guaranteed Low Off-Leakage Current: 1nA at +25°C

Guaranteed Low On-Leakage Current: 1nA at +25°C

+2V to +5.5V Single-Supply Operation

TTL/CMOS-Logic Compatible

Low Crosstalk: < -96dB

High Off-Isolation: < -93dB

Low Distortion: < 0.017% (600Ω)

热门应用

音频/视频信号切换

电池供电应用

通信系统

低电压数据采集
