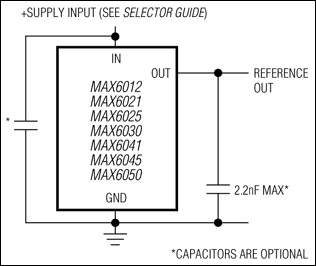

MAX6012A|MAX6012B - 典型电路框图:
MAX6012A|MAX6012B典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - MAX6012A|MAX6012B介绍
MAX6012A|MAX6012B - 高精度、低功耗、低压差、SOT23-3封装、电压基准

MAX6012A|MAX6012B是Maxim美信半导体公司的一款电压基准产品,MAX6012A|MAX6012B是高精度、低功耗、低压差、SOT23-3封装、电压基准,本站介绍了MAX6012A|MAX6012B的封装应用图解、特点和优点、功能等,并给出了与MAX6012A|MAX6012B相关的Maxim元器件型号供参考。

MAX6012A|MAX6012B - 高精度、低功耗、低压差、SOT23-3封装、电压基准 - 电压基准 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX6012, MAX6021, MAX6025, MAX6030, MAX6041, MAX6045, MAX6050 precision, low-dropout, micropower voltage references are available in miniature SOT23-3 surface-mount packages. They feature a proprietary curvature-correction circuit and laser-trimmed thin-film resistors that result in a low temperature coefficient of <15ppm/°C and initial accuracy of better than 0.2%. These devices are specified over the extended temperature range.

These series-mode voltage references draw only 27µA of quiescent supply current and can sink or source up to 500µA of load current. Unlike conventional shunt-mode (two-terminal) references that waste supply current and require an external resistor, devices in the MAX6012 family offer a supply current that's virtually independent of supply voltage (with only a 0.8µA/V variation with supply voltage) and do not require an external resistor. Additionally, these internally compensated devices do not require an external compensation capacitor and are stable with up to 2.2nF of load capacitance. Eliminating the external compensation capacitor saves valuable board area in space-critical applications. Their low dropout voltage and supply-independent, ultra-low supply current make these devices ideal for battery-operated, low-voltage systems.

关键特性
  • 以下关键特性由Maxim美信半导体提供:
  • 0.2% (max) Initial Accuracy
  • 15ppm/°C (max) Temperature Coefficient
  • 35µA (max) Quiescent Supply Current
  • 0.8µA/V Supply Current Variation with VIN
  • ±500µA Output Source and Sink Current
  • 100mV Dropout at 500µA Load Current
  • 0.12µV/µA Load Regulation
  • 8µV/V Line Regulation
  • Stable with CLOAD = 0 to 2.2nF
  • 热门应用
  • 电池供电应用
  • 数据采集
  • 手持式装置
  • 硬盘驱动器
  • 工业与过程控制系统
