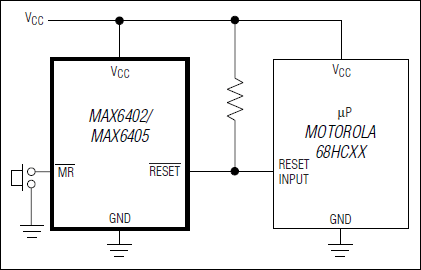

MAX6405 - 典型电路框图:
Maxim产品 - MAX6405介绍
MAX6405 - 微处理器监控电路,4焊球(2 x 2)芯片级封装

MAX6405是Maxim美信半导体公司的一款监控电路、电压监测、排序产品,MAX6405是微处理器监控电路,4焊球(2 x 2)芯片级封装,本站介绍了MAX6405的封装应用图解、特点和优点、功能等,并给出了与MAX6405相关的Maxim元器件型号供参考。

MAX6405 - 微处理器监控电路,4焊球(2 x 2)芯片级封装 - 监控电路、电压监测、排序 - 低功耗微处理器监控电路,采用4焊球晶片级封装 - 美信半导体


The MAX6400–MAX6405 is a family of ultra-low power microprocessor (µP) supervisory circuits used for monitoring battery, power-supply, and regulated system voltages. Each device contains a precision bandgap reference comparator and is trimmed to specified trip threshold voltages. These devices provide excellent circuit reliability and low cost by eliminating external components and adjustments when monitoring system voltages from 2.5V to 5.0V. A manual reset input is also included.

The MAX6400–MAX6405 assert a reset signal whenever the VCC supply voltage falls below a preset threshold. These devices are differentiated by their output logic configurations and preset threshold voltages. The MAX6400/MAX6403 (push-pull) and the MAX6402/MAX6405 (open-drain) have an active-low reset (active-low RESET is logic low when VCC is below VTH). The MAX6401/MAX6404 have an active-high push-pull output (RESET is logic high when VCC is below VTH). All parts are guaranteed to be in the correct output logic state for VCC down to 1V. The reset circuits designed to ignore fast transients on VCC. The MAX6400/MAX6401/MAX6402 have voltage thresholds between 2.20V and 3.08V in approximately 100mV increments. The MAX6403/MAX6404/MAX6405 have voltage thresholds between 3.30V and 4.63V in approximately 100mV increments.

Ultra-low supply current of 500nA (MAX6400/MAX6401/MAX6402) makes these parts ideal for use in portable equipment. These devices are available in 4-bump chip-scale packages (UCSP™)

  • 以下关键特性由Maxim美信半导体提供:
  • Ultra-Small 4-Bump (2 x 2) UCSP (See UCSP Reliability Section for More Details).
  • 70% Smaller Than SC70 Package
  • Ultra-Low 500nA (typ) Supply Current (MAX6400/MAX6401/MAX6402)
  • Factory-Trimmed Reset Thresholds from 2.20V to 4.63V in Approximately 100mV Increments
  • ±2.5% Threshold Accuracy -40°C to +85°C
  • Factory-Set 100ms (min) Reset Timeout Period
  • Manual Reset Input
  • Guaranteed Reset Valid to VCC = 1.0V
  • Three Reset Output Logic Options: Active-Low Push-Pull, Active-High Push-Pull, and Active-Low Open-Drain.
  • Immune to Short VCC Transients
  • No External Components
