产品概述

The MAX4521/MAX4522/MAX4523 are quad, low-voltage,single-pole/single-throw (SPST) analog switches.On-resistance (100Ω max) is matched between switches to 4Ω max, and is flat (12Ω max) over the specifiedsignal range. Each switch can handle rail-to-rail analogsignals. The off-leakage current is only 1nA at +25°Cand 10nA at +85°C.

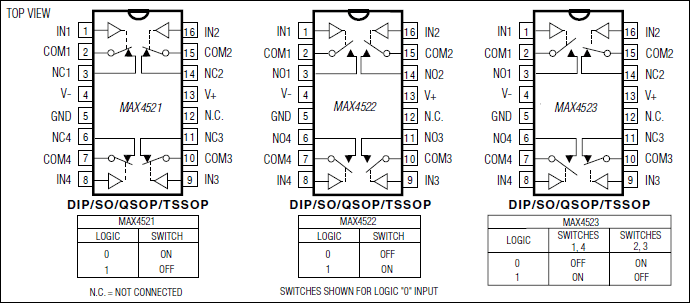

The MAX4521 has four normally closed (NC) switches,and the MAX4522 has four normally open (NO) switches.The MAX4523 has two NC switches and two NOswitches.

These CMOS switches can operate with dual powersupplies ranging from ±2V to ±6V or a single supplybetween +2V and +12V. They are fully specified for single+2.7V operation.

All digital inputs have +0.8V and +2.4V logic thresholds,ensuring TTL/CMOS-logic compatibility whenusing ±5V or a single +5V supply.

关键特性

以下关键特性由Maxim美信半导体提供：

+2V to +12V Single Supply
±2V to ±6V Dual Supplies

100Ω Signal Paths with ±5V Supplies

Low Power Consumption, < 1µW

4 Separately Controlled SPST Switches

Rail-to-Rail Signal Handling

Pin Compatible with Industry-Standard DG211/DG212/DG213

> 2kV ESD Protection per Method 3015.7

TTL/CMOS-Compatible Inputs with ±5V or Single +5V Supply

热门应用

音频信号切换

航空电子

电池供电应用

数据采集

网络

测试设备
