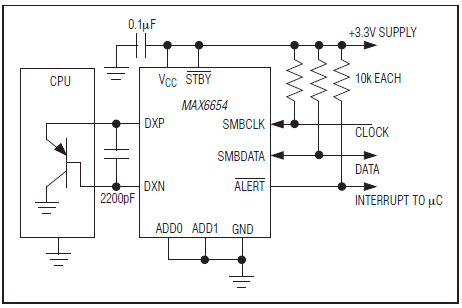

MAX6654 - 典型电路框图：
MAX6654典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX6654介绍

MAX6654 - 精度为1°C的远端/本地温度传感器，带有SMBus串行接口

MAX6654是Maxim美信半导体公司的一款1-Wire器件产品，MAX6654是精度为1°C的远端/本地温度传感器，带有SMBus串行接口，本站介绍了MAX6654的封装应用图解、特点和优点、功能等，并给出了与MAX6654相关的Maxim元器件型号供参考。

MAX6654 - 精度为1°C的远端/本地温度传感器，带有SMBus串行接口 - 1-Wire器件 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX6654 is a precise digital thermometer that reports the temperature of both a remote P-N junction and its own die. The remote junction can be a diode-connected transistor—typically a low-cost, easily mounted 2N3904 NPN type or 2N3906 PNP type—that replaces conventional thermistors or thermocouples. Remote accuracy is ±1°C for multiple transistor manufacturers, with no calibration needed. The remote junction can also be a common-collector PNP, such as a substrate PNP of a microprocessor (µP).

The 2-wire serial interface accepts standard System Management Bus (SMBus), Write Byte, Read Byte, Send Byte, and Receive Byte commands to program the alarm thresholds and to read temperature data. Measurements can be done automatically and autonomously, with the conversion rate programmed by the user, or programmed to operate in a single-shot mode. The adjustable conversion rate allows the user to optimize supply current and temperature update rate to match system needs. When the conversion rate is faster than 1Hz, the conversion results are available as a 7-bit-plus-sign byte with a 1°C LSB. When the conversion rate is 1Hz or slower, the MAX6654 enters the extended mode. In this mode, 3 additional bits of temperature data are available in the extended resolution register, providing 10-bit-plus-sign resolution with a 0.125°C LSB. Singleshot conversions also have 0.125°C per LSB resolution when the conversion rate is 1Hz or slower.

A parasitic resistance cancellation (PRC) mode can also be invoked for conversion rates of 1Hz or slower by setting bit 4 of the configuration register to 1. In PRC mode, the effect of series resistance on the leads of the external diode is canceled. The 11-bit conversion in PRC mode is performed in <500ms and is disabled for conversion rates faster than 1Hz. The one-shot conversion is also 11 bits in < 500ms.

The MAX6654 default low-temperature measurement limit is 0°C. This can be extended to -64°C by setting bit 5 of the configuration register to 1.

The MAX6654 is available in a small, 16-pin QSOP surface-mount package.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • High Accuracy ±1°C (max) from +70°C to +100°C (Remote)
  • 11-Bit, 0.125°C Resolution
  • Dual Channel: Measures Remote and Local Temperature
  • No Calibration Required
  • Programmable Under/Overtemperature Alarms
  • I2C-Compatible/SMBus Interface
  • +3V to +5.5V Supply Range
