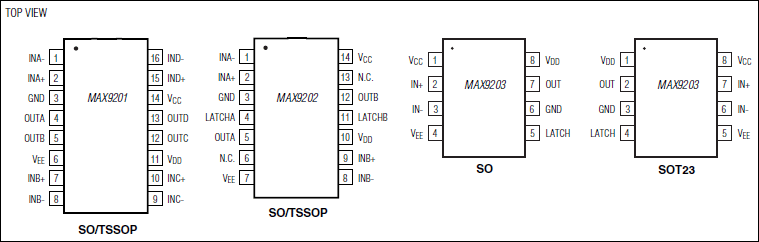

MAX9203 - 典型电路框图:
MAX9203典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - MAX9203介绍
MAX9203 - 低成本、7ns、低功耗电压比较器

MAX9203是Maxim美信半导体公司的一款放大器产品,MAX9203是低成本、7ns、低功耗电压比较器,本站介绍了MAX9203的封装应用图解、特点和优点、功能等,并给出了与MAX9203相关的Maxim元器件型号供参考。

MAX9203 - 低成本、7ns、低功耗电压比较器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX9201/MAX9202/MAX9203 high-speed, lowpower,quad/dual/single comparators feature TTL logicoutputs with active internal pullups. Fast propagationdelay (7ns typ at 5mV overdrive) makes these devicesideal for fast A/D converters and sampling circuits, linereceivers, V/F converters, and many other data-discrimination,signal restoration applications.

All comparators can be powered from separate analogand digital power supplies or from a single combinedsupply voltage. The analog input common-mode rangeincludes the negative rail, allowing ground sensingwhen powered from a single supply. The MAX9201/MAX9202/MAX9203 consume only 9mW per comparatorwhen powered from a +5V supply.

The MAX9202/MAX9203 feature output latches with TTLcompatible inputs. The comparator output states areheld when the latch inputs are driven low. TheMAX9201 provides all the same features as theMAX9202/MAX9203 with the exception of the latches.

The MAX9201/MAX9202/MAX9203 are lower power andlower cost upgrades to the MAX901/MAX902/MAX903offering a 50% power savings and smaller packaging.

关键特性
  • 以下关键特性由Maxim美信半导体提供:
  • Fast 7ns Propagation Delay
  • Low 9mW/Comparator Power Consumption
  • Separate Analog and Digital Supplies
  • Flexible Analog Supply: +5V to +10V or ±5V
  • Input Voltage Range Includes
  • Negative Supply Rail
  • TTL-Compatible Outputs
  • TTL-Compatible Latch Inputs(MAX9202/MAX9203)
  • Available in Space-Saving Packages
  • 8-Pin SOT23 (MAX9203)
  • 14-Pin TSSOP (MAX9202)
  • 16-Pin TSSOP (MAX9201)
  • 热门应用
  • 高速A/D转换器
  • 高速数据采样
  • 高速信号整形/恢复
  • 高速V/F转换器
  • 输入触发电路
  • 线接收器
  • PWM电路
  • 门限检测器
