MAX1406 - ±15kV ESD保护、符合EMC标准、230kbps、3 Tx/3 Rx RS-232 IC

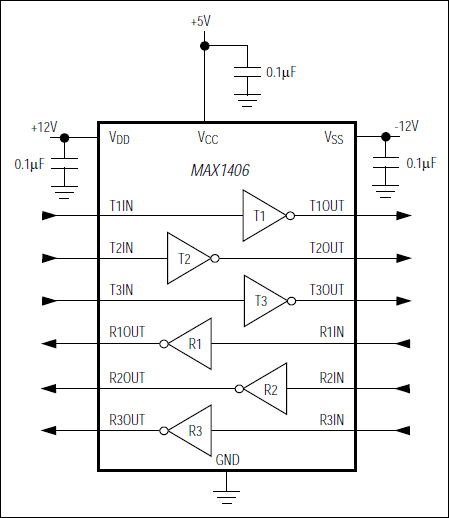

MAX1406是Maxim美信半导体公司的一款驱动器-接收器产品，MAX1406是±15kV ESD保护、符合EMC标准、230kbps、3 Tx/3 Rx RS-232 IC，本站介绍了MAX1406的封装应用图解、特点和优点、功能等，并给出了与MAX1406相关的Maxim元器件型号供参考。

MAX1406 - ±15kV ESD保护、符合EMC标准、230kbps、3 Tx/3 Rx RS-232 IC - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX1406 is an RS-232 IC designed to meet the stringent electrostatic discharge (ESD) requirements of the European community. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.

The MAX1406 has three RS-232 transmitters and three RS-232 receivers, and is optimized for operation in printer, modem, and telecom applications. It is guaranteed to run at data rates up to 230kbps, providing compatibility with popular software for communicating with personal computers. Power-supply current is less than 500µA for IDD and ISS, and less than 1mA for ICC.

The MAX1406 is pin and functionally compatible with the industry-standard MC145406, so existing designs can instantly become Electromagnetic Compatibility (EMC) compliant. The MAX1406 is available in DIP and SO packages, and in a tiny SSOP that reduces board space.

关键特性

以下关键特性由Maxim美信半导体提供：

Enhanced ESD Protection:

±15kV Human Body Model

±8kV IEC 1000-4-2, Contact Discharge

±15kV IEC 1000-4-2, Air-Gap Discharge

Latchup Free During an ESD Event

16-Pin SSOP or SO Packages

Guaranteed 230kbps Data Rate

Flow-Through Pinout

Pin Compatible with MC145406

热门应用

符合IEC 1000-4-2标准的设备

仪表

调制解调器

打印机

电信
