MAX205 - +5V、RS-232收发器，0.1µF外部电容

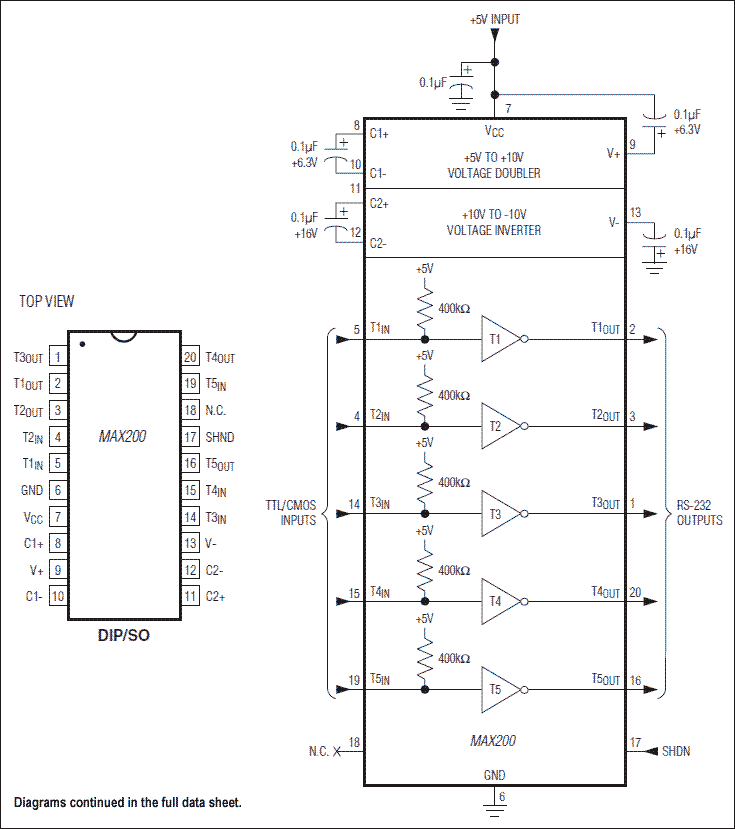

MAX205是Maxim美信半导体公司的一款驱动器-接收器产品，MAX205是+5V、RS-232收发器，0.1µF外部电容，本站介绍了MAX205的封装应用图解、特点和优点、功能等，并给出了与MAX205相关的Maxim元器件型号供参考。

MAX205 - +5V、RS-232收发器，0.1µF外部电容 - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

MAX200-MAX209, MAX211, and MAX213 are a family of RS-232 and V.28 transceivers with integrated charge pump circuitry for single +5V supply operation.

The drivers maintain the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120kbps when loaded in accordance with the EIA/TIA-232E specification.

The MAX211 and MAX213 are available in a 28-pin, wide small-outline (SO) package and a 28-pin shrink small- outline (SSOP) package, which occupies only 40% of the area of the SO. The MAX207 is available in a 24-pin SO package and a 24-pin SSOP. The MAX203 and MAX205 use no external components and are recommended for applications with limited circuit board space.

关键特性

以下关键特性由Maxim美信半导体提供：

Saves Board Space

Integrated Charge Pump Circuitry

Eliminates the Need for a Bipolar ±12V Supply

Enables Single Supply Operation From Either +5V or 9V to +12V

Integrated 0.1μF Capacitors (MAX203, MAX205)

24 pin SSOP Package Saves Up to 40% Versus SO Package

Saves Power for Longer Battery Operation

5µW Shutdown Mode (MAX200, MAX205, MAX206, MAX211)

75µW Ring Indicator Monitoring with Two Active Receivers (MAX213)

热门应用

电池供电设备

手持式装置
