MAX5160 - 低功耗数字电位器

MAX5160是Maxim美信半导体公司的一款光电产品产品，MAX5160是低功耗数字电位器，本站介绍了MAX5160的封装应用图解、特点和优点、功能等，并给出了与MAX5160相关的Maxim元器件型号供参考。

MAX5160 - 低功耗数字电位器 - 光电产品 - 首款SOT23数字电位器 - 美信半导体

产品概述

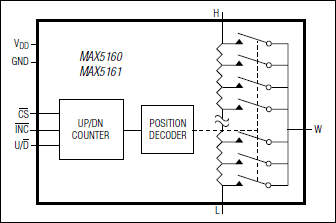

The MAX5160/MAX5161 linear-taper digital potentiometers perform the same function as a mechanical potentiometer or a variable resistor. They consist of a fixed resistor and a wiper contact with 32 tap points that are digitally controlled by three lines for the 8-pin MAX5160 or by two lines for the 6-pin MAX5161.

These parts are ideal for applications requiring digitally controlled resistors. Three resistance values are available for each part type: 50kΩ,100kΩ, and 200kΩ. A nominal resistor temperature coefficient of 50ppm/°C end-to-end and only 5ppm/°C ratiometric makes the MAX5160 ideal for applications requiring a low-temperature-coefficient variable resistor, such as low-tempco, adjustable-gain circuit configurations.

The MAX5160 is available in an 8-pin µMAX package, and the MAX5161 is available in a 6-pin SOT23 package. Both devices are guaranteed over the extended-industrial temperature range (-40°C to +85°C).

关键特性

以下关键特性由Maxim美信半导体提供：

32 Tap Positions

50kΩ, 100kΩ, and 200kΩ Resistance Values

400Ω Wiper Resistance

±25% Resistance Tolerance

3-Wire Serial Data Input

±1LSB DNL

±0.5LSB INL

100nA Supply Current

+2.7V to +5.5V Single-Supply Operation

Power-On Reset: Wiper Goes to Midscale (position 16)

±2kV ESD Protection

Small-Footprint Packages

6-Pin SOT23 (MAX5161)

8-Pin µMAX (MAX5160)

Glitchless Switching Between the Resistor Taps

热门应用

LCD屏调节

替代机械电位器

音量控制
