MAX5365 - 低成本、低功耗、6位DAC，带有3线串行接口，SOT23封装

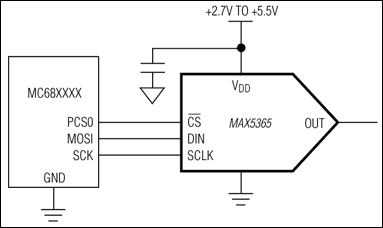

MAX5365是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX5365是低成本、低功耗、6位DAC，带有3线串行接口，SOT23封装，本站介绍了MAX5365的封装应用图解、特点和优点、功能等，并给出了与MAX5365相关的Maxim元器件型号供参考。

MAX5365 - 低成本、低功耗、6位DAC，带有3线串行接口，SOT23封装 - 数据转换器和采样-保持电路 - 首款3线、SOT DAC，内置基准 - 美信半导体

产品概述

The MAX5363/MAX5364/MAX5365 low-cost, 6-bit digital- to-analog converters (DACs) in miniature 6-pin SOT23 packages have a simple 3-wire, SPI™/QSPI™/MICROWIRE™-compatible serial interface that operates up to 10MHz. The MAX5363 has an internal +2V reference and operates from a +2.7V to +3.6V supply. The MAX5364 has an internal +4V reference and operates from a +4.5V to +5.5V supply. The MAX5365 operates over the full +2.7 to +5.5V supply range and has an internal reference equal to 0.9 x VDD.

The MAX5363/MAX5364/MAX5365 require an extremely low supply current of only 150µA (typ) and provide a buffered voltage output. These devices power up at zero code and remain there until a new code is written to the DAC registers. This provides additional safety for applications that drive valves or other transducers that need to be off on power-up. The MAX5363/MAX5364/MAX5365 include a 1µA, low-power shutdown mode that features software-selectable output loads of 1kΩ, 100kΩ, or 1MΩ to ground.

关键特性

以下关键特性由Maxim美信半导体提供：

6-Bit Resolution in a Miniature 6-Pin SOT23 Package

Wide +2.7V to +5.5V Supply Range (MAX5365)

< 1µA Shutdown Mode

Software-Selectable Output Resistance During Shutdown

Buffered Output Drives Resistive Loads

Low-Glitch Power-On Reset to Zero DAC Output

3-Wire SPI/QSPI/MICROWIRE-Compatible Interface

< ±5% Full-Scale Error (MAX5365)

< ±1 LSB max INL/DNL

Low 230µA max Supply Current

热门应用

汽车引擎控制

蜂窝电话基站

蜂窝电话

无绳电话

LCD显示器

掌上电脑

笔输入掌上电脑

便携式患者监视/药物传递

便携式测试仪

POS终端

电信交换机
