MAX9112 - 单/双路LVDS线驱动器，提供超低差分偏移，SOT23封装

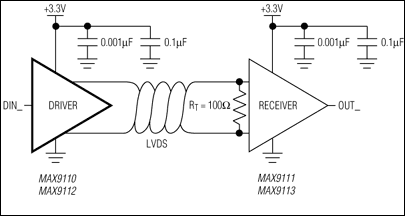

MAX9112是Maxim美信半导体公司的一款电平转换器产品，MAX9112是单/双路LVDS线驱动器，提供超低差分偏移，SOT23封装，本站介绍了MAX9112的封装应用图解、特点和优点、功能等，并给出了与MAX9112相关的Maxim元器件型号供参考。

MAX9112 - 单/双路LVDS线驱动器，提供超低差分偏移，SOT23封装 - 电平转换器 - 业内具有最小脉冲偏差的LVDS驱动器 - 美信半导体

产品概述

The MAX9110/MAX9112 single/dual low-voltage differential signaling (LVDS) transmitters are designed for high-speed applications requiring minimum power consumption, space, and noise. Both devices support switching rates exceeding 500Mbps while operating from a single +3.3V supply, and feature ultra-low 250ps (max) pulse skew required for high-resolution imaging applications, such as laser printers and digital copiers.

The MAX9110 is a single LVDS transmitter, and the MAX9112 is a dual LVDS transmitter.

Both devices conform to the EIA/TIA-644 LVDS standard. They accept LVTTL/CMOS inputs and translate them to low-voltage (350mV) differential outputs, minimizing electromagnetic interference (EMI) and power dissipation. These devices use a current-steering output stage, minimizing power consumption, even at high data rates. The MAX9110/MAX9112 are available in space-saving 8-pin SOT23 and SO packages. Refer to the MAX9111/MAX9113 data sheet for single/dual LVDS line receivers.

关键特性

以下关键特性由Maxim美信半导体提供：

Low 250ps (max) Pulse Skew for High-Resolution Imaging and High-Speed Interconnect

Space-Saving 8-Pin SOT23 and SO Packages

Pin-Compatible Upgrades to DS90LV017/017A and DS90LV027/027A (SO Packages)

Guaranteed 500Mbps Data Rate

Low 22mW Power Dissipation at 3.3V (31mW for MAX9112)

Conform to EIA/TIA-644 Standard

Single +3.3V Supply

Flow-Through Pinout Simplifies PC Board Layout

Driver Outputs High Impedance when Powered Off

热门应用

桥路

蜂窝电话基站

复印机

高速接入(电信)

LCD显示器与面板表

网络集线器、交换机和路由器

打印机与传真机

路由器/交换机

电信交换机

无线本地环路(WLL)
