MX7628 - CMOS、双路、缓冲驱动8位乘法DAC

MX7628是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MX7628是CMOS、双路、缓冲驱动8位乘法DAC，本站介绍了MX7628的封装应用图解、特点和优点、功能等，并给出了与MX7628相关的Maxim元器件型号供参考。

MX7628 - CMOS、双路、缓冲驱动8位乘法DAC - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

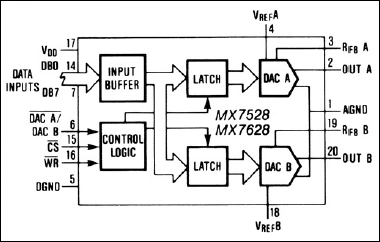

The MX7528/MX7628 contains two 8-bit multiplying digital-to-analog converters (DACs). Separate on-chip latches hold the input data for each DAC to allow easy interface to microprocessors. The data load operation is similar to a static RAM write cycle. Data is loaded using only active-low CS, active-low WR, and DAC Select (active-low DAC A /DAC B) inputs.

Each DAC has a separate reference input and internal feedback resistor which allow fully independent operation while maintaining excellent DAC-to-DAC matching. The MX7528 operates from a single +5 to +15V power supply whereas the MX7628 operates from +12V to +15V. The MX7528 has TTL compatible inputs at +5V supply only and the MX7628 has TTL compatible inputs from +12V to +15V supplies. The MX7528/MX7628 is supplied in 20-lead narrow DIP and Small Outline Packages.

关键特性

以下关键特性由Maxim美信半导体提供：

Data Latches For Both DACs

MX7528—+5V to +15V Single Supply Operation

MX7628—+12V to +15V Single Supply Operation with TTL/CMOS Compatible Inputs

±½ LSB Linearity

Microprocessor Compatible

Four-Quadrant Multiplication

DAC Matched to 1%

热门应用

数字至同步转换

数控滤波器

磁盘驱动

运动控制系统

可编程衰减器

X-Y制图
